NT4 - HEAVY DUTY VEHICLES
AUTOMATIC LOAD HOLDING SYSTEM
ADJUSTABLE RAMP
ADJUSTABLE RAMP
ACCES RAMPS AS STOPPERS
Advantages
Sustainable
Without cable
Without pulley
Without chain
Powerfull
Easy to use
Safe
Robust
Show more
Types of use
Description
TECHNICAL FEATURES
- 100,000 @ 140,000 lb capacity
- 4 posts with synchronized hydraulic cylinders
- Without cable, chain and pulley
- Automatic load holding system (gravity stopper)
- Electrical control panel:
- Status indicator lights (green/red) for the automatic holding system
- Adjustable runway ; system to vary the space between both runways

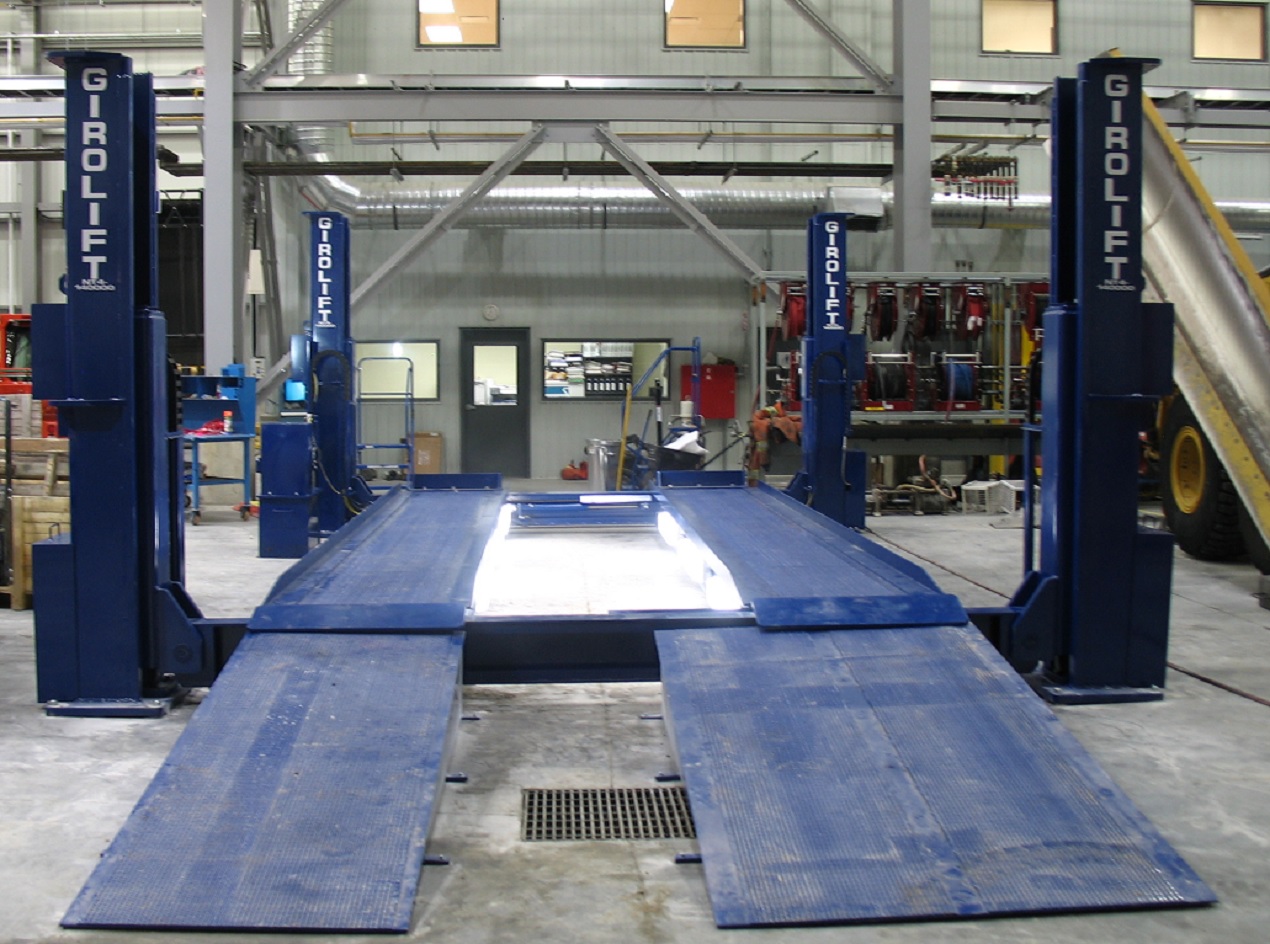

- Access ramps that double as wheel stoppers during lifting operation
STANDARD EQUIPMENT
- 2 runways built to your specifications
- Hydraulic and pneumatic circuits integrated into runways
OPTIONAL EQUIPMENT
- Wireless remote control

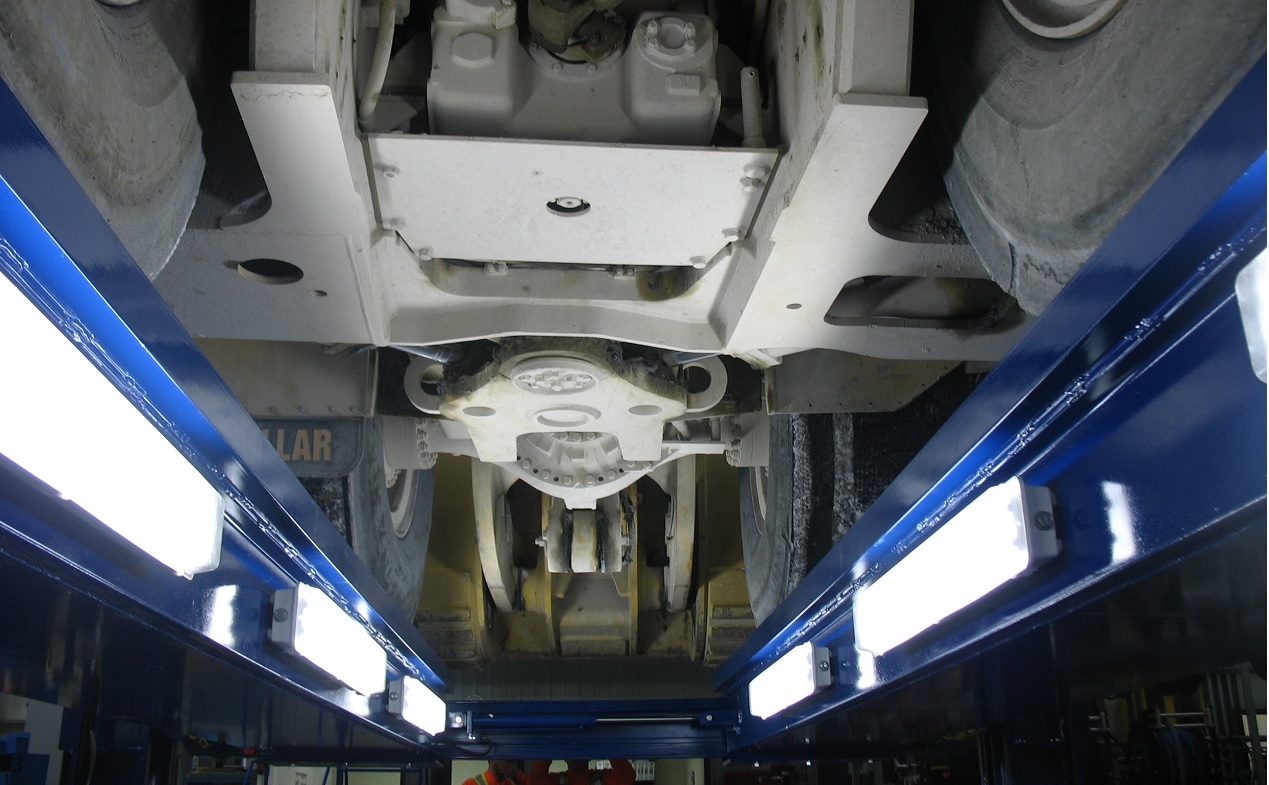

- Under-vehicle lighting
- 110 VAC electrical outlet under runway
- Stainless steel hydraulic tubing
- Jib crane on one post
Specifications
- See PDF
