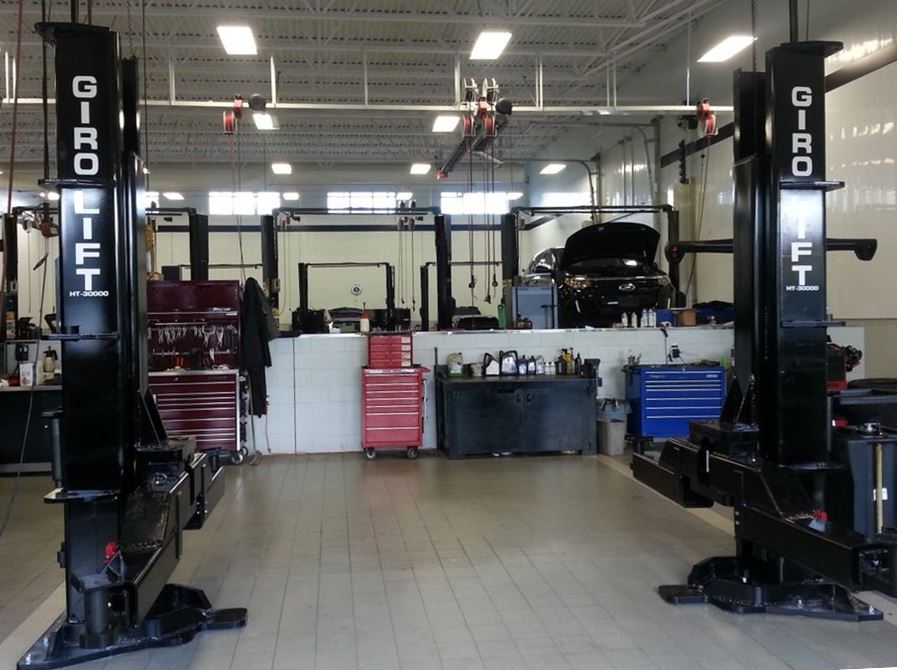

HT-30 000
PNEUMATIC SWING ARM
AUTOMATIC LOAD HOLDING SYSTEM
SWING ARM RESTRAINT
EXTENSIONS AND LIFTING PADS ADAPTERS

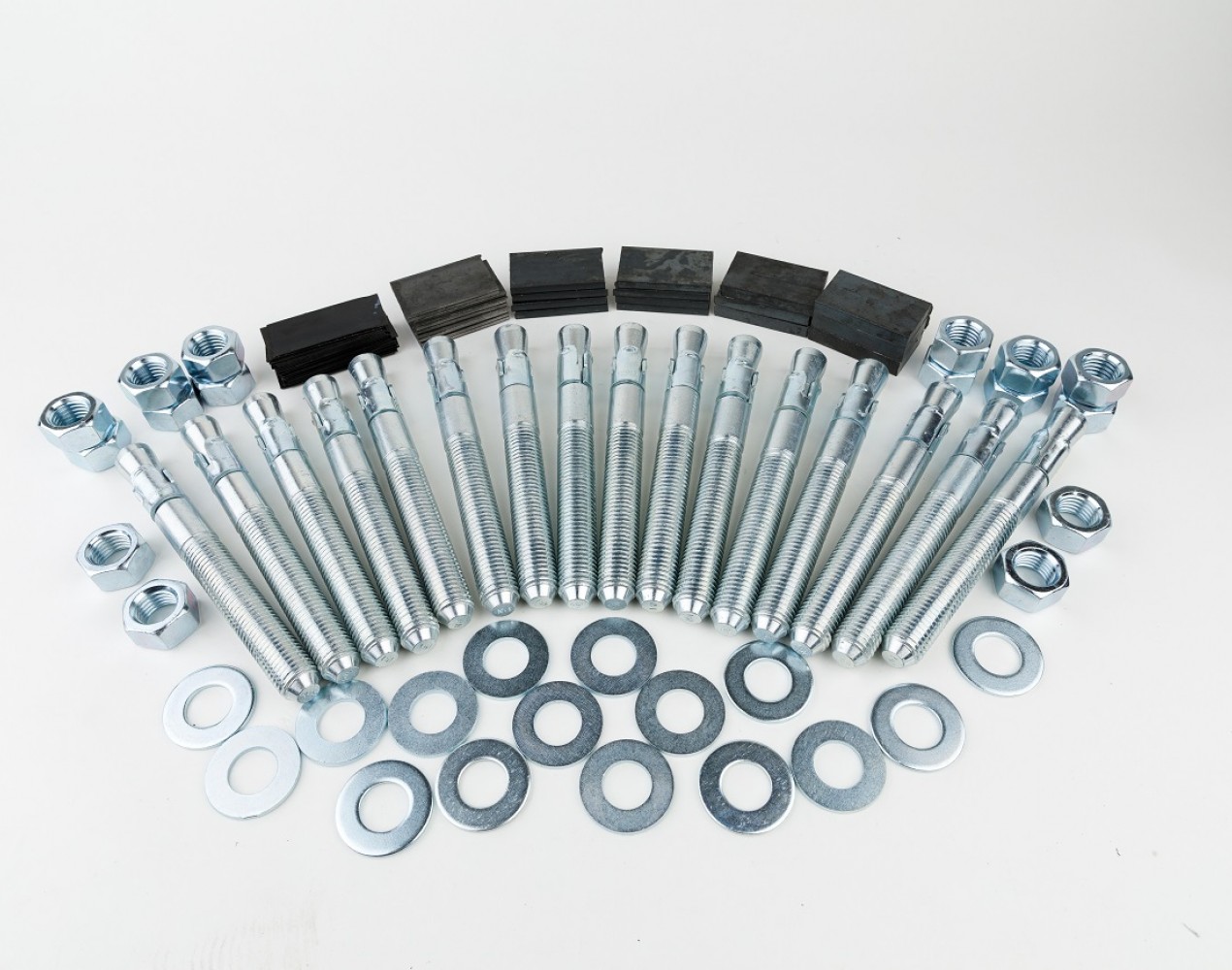

WEDGE ANCHORS AND SHIMS KIT
Advantages
Sustainable
Without cable
Without pulley
Without chain
Powerfull
Easy to use
Safe
Robust
Show more
Types of use
Description
TECHNICAL FEATURES
- 2 posts with synchronized hydraulic cylinders
- Without cable, chain and pulley
- No superstructure between posts
- Automatic load holding system (gravity stopper)
- Swing arm restraint
- Symmetrical design
STANDARD EQUIPMENT
- Lifting arm pneumatically operated
- 12 x socket adapters:
- 4 x 4" height
- 4 x 6" height
- 4 x 12" height
- 4 x grooved lifting pad adapters (5" dia.)
- 4 anti-skid truck lifting pads
- 16 x wedge anchors
OPTIONAL EQUIPMENT
- Power voltage 208-230/1/60
- Jib crane (2 ton capacity)
- Fork lift adapters
- Adjustable lifting pad adapter
- Folded lifting pad adapter
- Tripod high reach supplementary stand
Photo gallery
Specifications
| Capacity | 30 000 LB |
| Lifting speed | 130 SEC |
| Drive motor | 5 HP |
| Power voltage | 575/3/60 |
| Travel height | 71" |
| Total height | 153-1/4" |
| Shipping weight | 8 600 LB |
